1. Click “Test Parameter Settings”, select Battery pack civity, add New Pack on the menu. Input battery pack model, vehicle brand and model.
2. Test parameters, configuration parameters
The battery pack leak test parameters:
Battery pack test capacity: 30L (default) (range: 2~300)
Smart inflation time: 300S (default) (range: 1~999)
Balance time: 60S (default) (range: 1~200)
Test duration: 60S (default) (range: 1~300)
Upper limit of target pressure: 35mbar (default)
Lower limit of target pressure: 30mbar
Target pressure: 50mbar (range: 5~300)
Leakage: 0.29mbar (default) (range: 0.05~5)
The water-cooling system leak test parameters:
Battery pack test capacity: 3L (default) (range: 0.5~20)
Smart inflation time: 100S (default) (range: 1~300)
Balance time: 120S (default) (range: 1~200)
Test duration: 60S (default) (range: 1~300)
Upper limit of target pressure: 3600mbar (default)
Lower limit of target pressure: 3500mbar
Target pressure: 3550mbar (range: 300~5000)
Leakage: 0.68mbar (default) (range: 50~5000)

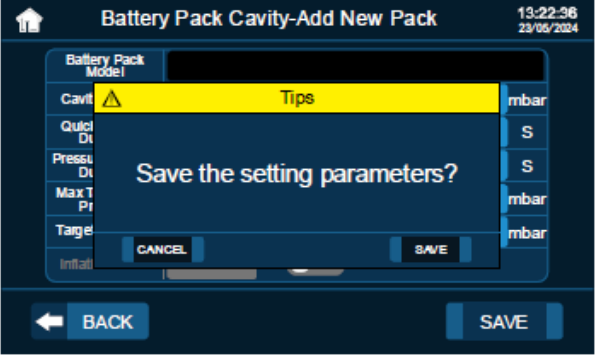

3. Parameter saving
Check the configured parameters carefully.
The target test pressure parameter is the test standard value suggested by the vehicle manufacturers or the battery pack manufacturers. The wrong setting will cause the test result to be invalid. If the pressure exceeds the pressure of the battery pack itself, the battery pack will be swollen or damaged directly!
